| Place of Origin: | China mainland |
| Brand Name: | SRI |
| Certification: | ISO 9001 |
| Model Number: | BZ-CN-6/8 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 2000-3000USD |
| Packaging Details: | Polywood case |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 20sets/Month |
| Standards: | GB/T7707,JIS C2107,JIS Z0237 | Test Material: | Plastic Printings, Coatings |
|---|---|---|---|
| Test Station: | 3,6,8 Optional | Power Supply: | AC 220V, 50HZ |
Standards: GB/T 4851-2014, ASTM D3654, JIS Z0237

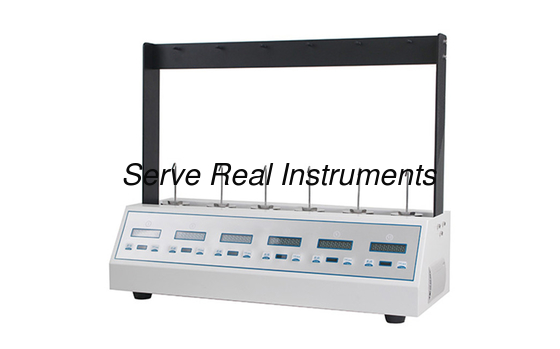

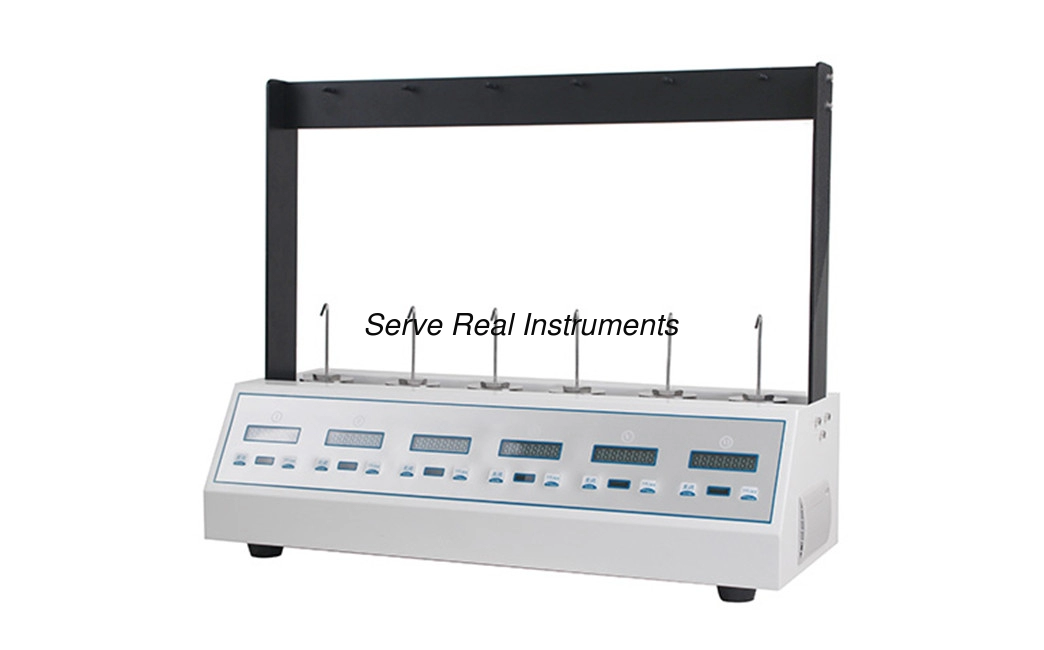

The adhesion tester is designed and manufactured in accordance with the provisions of the national standard GB/T 4851-2014, and is applicable to the adhesion test of pressure-sensitive adhesive tapes, medical patches, self-adhesive labels, protective films and other products.
• Test plates and test weights designed in strict accordance with GB/T 4851-2014 to ensure the accuracy of test data
• The system is controlled by microcomputer and equipped with PVC operation panel
• Thin film keys and LCD display, convenient for users to quickly conduct test operation and data viewing
• Six test stations can conduct multiple groups of test items at the same time
• Automatic timing, locking and other functions further ensure the high accuracy of test results
• After the test, each station automatically prints the test results

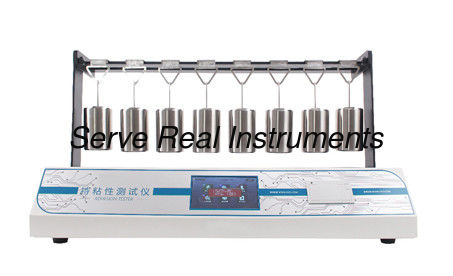

Hang the test plate with the sample vertically on the test frame, and hang the weight with the specified weight at the lower end. Test the ability of the adhesive tape to resist pulling off with the displacement of the sample after a certain time or the time when the sample completely disengages.
| Model | BZ-CN-6 | BZ-CN-8 |
| Standard press roll | 2000 g ± 100 g | |
| Weights | 1000 g ± 5 g(Weight including triangle hook) | |
| Test plate | 125 mm (L) × 50 mm (W) × 1.1 mm (D) | |
| Timing range | 0 ~ 10000h(standard configurations) | |
| Workstation | 6 pcs | 8pcs |
| Overall dimensions | 600 mm (L) × 240 mm (W) × 600 mm (H) | |
| Power Supply | AC 220V 50Hz / AC 120V 60Hz | |
| Net weight | 23 kg | |
Standard configuration: host, micro printer, weight, triangle hook, test plate, standard pressure roller
Optional parts: NIST SRM1810A fiberboard, horizontal test accessories: horizontal test rack, weight, loading plate, etc
