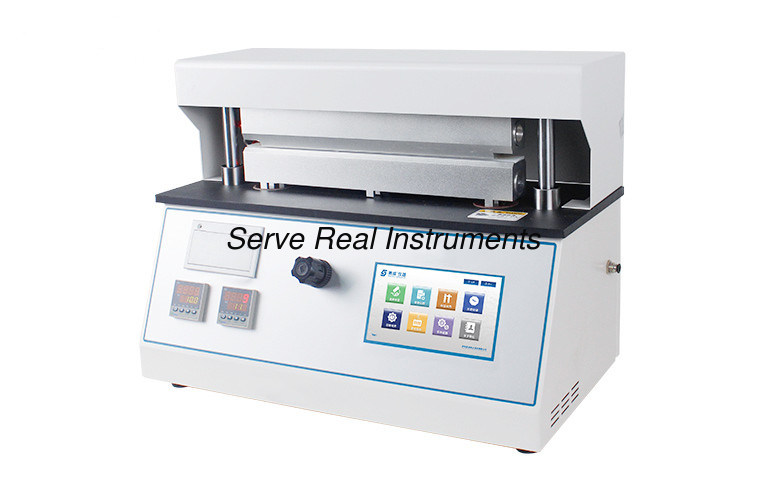

Hot tack tester heat seal strength tester Packaging test equipment ASTM F2029

Hot tack tester heat seal strength tester Packaging test equipment ASTM F2029

Hot tack tester heat seal strength tester Packaging test equipment ASTM F2029

Product Details:

Place of Origin: China mainland
Brand Name: SRI
Certification: ISO 9001
Model Number: BZ-HST-03A

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 3000-5000USD
Packaging Details: Polywood case
Delivery Time: 15 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 20sets/Month
Contact Now
Detailed Product Description
Standards: QB/T2358,ASTM F2029,YBB00122003 Test Material: Plastic Thin Film
Customized: No Power Supply: AC 220V, 50HZ


Standards: QB/T2358,ASTM F2029,YBB00122003


The heat seal tester is applicable for testing of plastic thin film, for determination of hot sealing temperature, heat sealing time, heat sealing pressure of soft package composite film.




MCU control, large screen LCD display, PVC operation panel, menu operation, easier for fast operation

Aluminum sealing type heat seal head guarantees uniform heating of heat cover, as well as uniform temperature on different position on sample

Data compensation system let the fast temperature rise of up down seal head and more accurate control

Down located dual pneumatic cylinder Synchronization loop guarantee uniform pressure on heat sealing surface

Pressure circulation system with cylinder, automatic pressure compensation, accurate pressure testing

The upper and lower thermal heads are independently temperature-controlled, and have an ultra-long thermal cover design to meet the needs of different customers.

Manual and foot switch dual start mode to prevent scald danger




Heat sealing temperature RT ~ 300℃
Temperature control accuracy ±0.2℃
Heat sealing time 0.1~999.9 s
Heat sealing pressure 0.05 MPa~ 0.7 MPa
Heat sealing surface 330 mm × 10 mm(Customized)
Heating mode Single or double
Air supply pressure 0.05 MPa~ 0.7 MPa(user prepared)
Air supply port Ф6 mm Polyurethane tube
Overall size 536 mm (L) × 335 mm (W) × 413 mm (H)
Power supply AC 220V 50Hz
Net weight 40 kg
