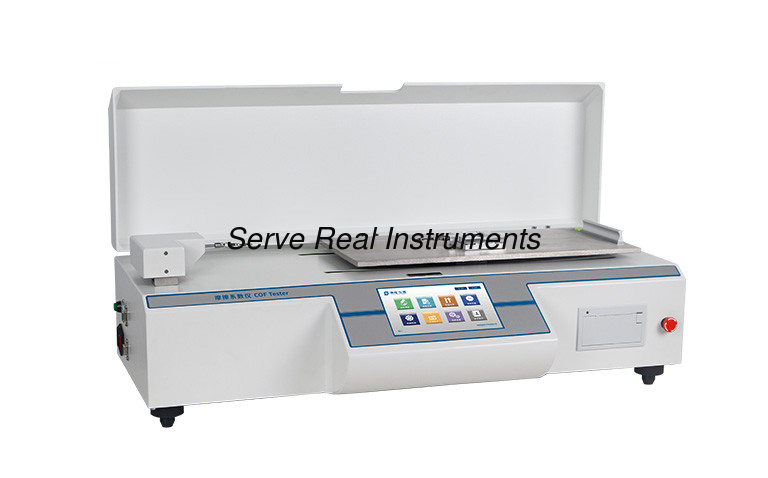

Universal friction coefficient tester ISO 8295 ASTM D1894 TAPPI T816

Universal friction coefficient tester ISO 8295 ASTM D1894 TAPPI T816

Universal friction coefficient tester ISO 8295 ASTM D1894 TAPPI T816

Product Details:

Place of Origin: China mainland
Brand Name: SRI
Certification: ISO 9001
Model Number: BZ-MCX02

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 3000-5000USD
Packaging Details: Polywood case
Delivery Time: 15 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 20sets/Month
Contact Now
Detailed Product Description
Standards: ISO 8295, ASTM D1894, TAPPI T816 Test Material: Plastics, Fabrics, Rubber, Papers, Others
Customized: No Power Supply: AC 220V, 50HZ


7-inch touch screen operation

Supports any slider quality, achieves stepless speed regulation function at experimental speed, and the motion drive system is stable and has high operating accuracy

Real time display of the trend of force changes during the test process on the test curve

Compliant with GMP user multi-level permissions, test data history can be queried, data cannot be changed, and can be audited and tracked

Supports static and dynamic friction measurement modes

This instrument meets multiple testing standards such as GB, ISO, and ASTM, and the testing methods can be selected according to customer needs

The instrument test bench and test slider have undergone demagnetization treatment and residual magnetism detection, effectively reducing system testing errors

The sensor adopts world-renowned imported components, with stable and reliable performance

Professional software can automatically perform statistical analysis of single piece and group test results

Micro printer, note printing of test statistics results at any time

USB communication interface


Testing standards

This equipment meets multiple national and international standards: GB/T 10006, ISO 8295, ASTM D1894, TAPPI T816



Load range 0 ~ 5 N(10N,30N optional)
Accuracy 0.5 degree
trip 400 mm
Slide mass 200 g, others can be customized
Test speed 0 ~ 800 mm/min
Power Supply AC 220 V 50 Hz
Overall dimensions 800 mm(L) × 390 mm(W) × 260 mm(H)
Net weight 25 kg



Standard configuration: host, microprinter, 200g slider, 500g slider, microprinter

Option: 1000g slider, non-standard slider, professional software, communication cable
