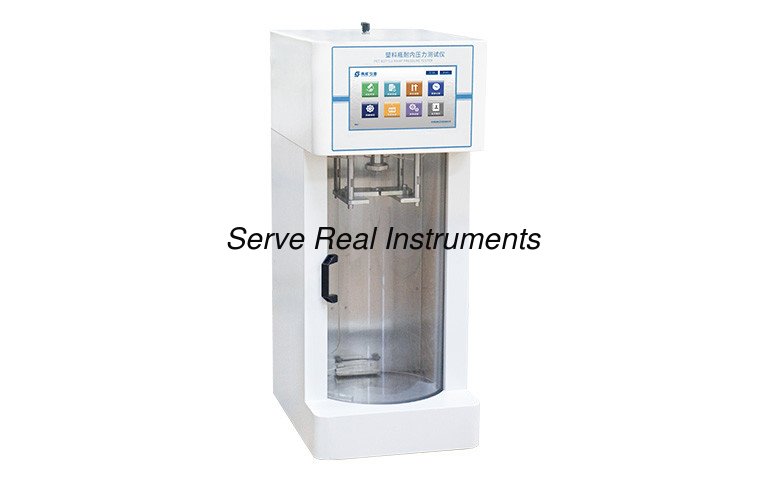

Plastic bottle internal pressure tester ASTM F1140, ASTM F2054

Plastic bottle internal pressure tester ASTM F1140, ASTM F2054

Plastic bottle internal pressure tester ASTM F1140, ASTM F2054

Product Details:

Place of Origin: China mainland
Brand Name: SRI
Certification: ISO 9001
Model Number: BZ-NY02

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 3000-5000USD
Packaging Details: Polywood case
Delivery Time: 15 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 20sets/Month
Contact Now
Detailed Product Description
Standards: ASTM F1140 ASTM F2054 ISO 11607-2 Test Material: Packagings, Plastic Bottle
Customized: No Power Supply: AC 220V, 50HZ


 This test equipment is suitable for internal pressure and conduct burst tests of various plastic bottles. The instrument automatically displays the pressure changes throughout the entire experimental process.



10 inch touch screen operation, user-friendly design

One click operation during the experimental process, improving the efficiency of intelligent testing

High definition touch screen display of experimental data, automatic statistics and printing of results

Testing supports dual modes of pressure maintaining and crushing, compatible with diversity

The instrument is equipped with an SMC booster pump, with a maximum pressure of up to 1.6MPa

Support for PET bottle cap automatic puncture positive pressure method

The instrument is opened by revolving door, which is safe and fast

Standard USB interface configuration, computer software support, results displayed in multiple units



Testing Principles

By injecting a certain pressure gas into a plastic beverage bottle sample and holding it for a certain time, the pressure tester automatically determines whether the sample is sealed properly or the maximum pressure value during explosion.

This instrument meets multiple national and international standards: GB/T 10440, GB/T 18454, GB/T 19741, GB/T 17447, GB/T 17876, GB/T 10004, BB/T 0025, QB/T 1868, QB/T1871, ISO 11607-2, ASTM F1140, ASTM F2054, ISO11607, YBB 00252005, YBB 001620026



Test scope 0 ~ 1.6 MPa
Measurement accuracy ±0.5%
Sample size Height ≤ 340mm, diameter ≤ 200mm, bottle mouth size 26mm (customizable)
Air supply pressure 0.8MPa (provided by the gas source user)
Air connection Φ 6mm polyurethane pipe
Overall dimensions 350 mm(L) × 400 mm(W) × 600 mm(H)
Power supply AC 220 V 50 Hz
Net weight 30 kg
