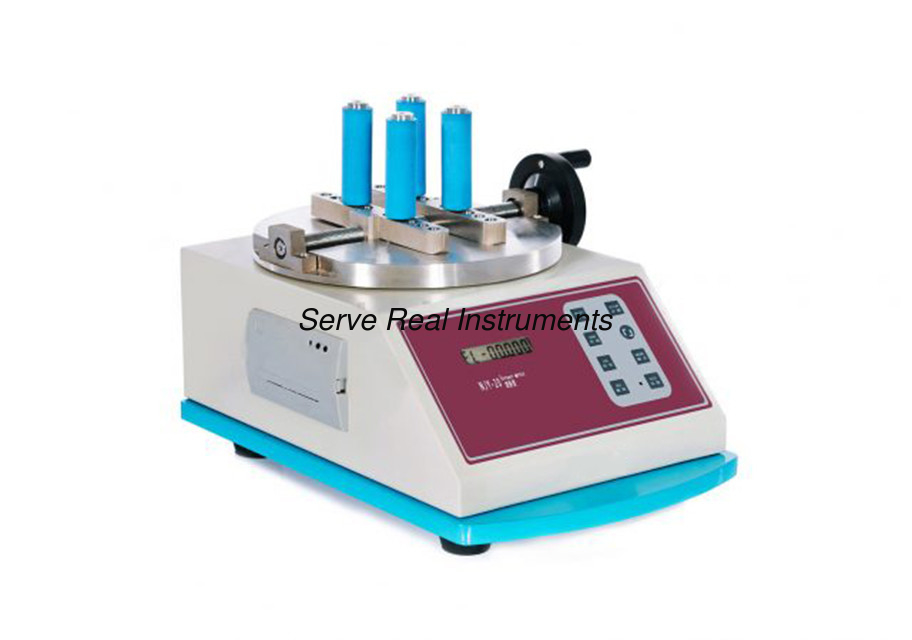

The bottle cap torque tester is used to test the open and locking force of the caps of bottle, spout bags, flexible tube, screws, vacuum flask.
Standards
GB/T 17876,ASTM D2063,ASTM D3198,ASTM D3474
Specifications
Load Cell Capacity 20 Nm (Standard)
40 Nm (Optional)
50 Nm (Optional)
Accuracy ±1% F.S
Resolution 0.001Nm
Clamp Range Dia. 5 mm ~ Dia. 170 mm (Diameter)
Statistical capacity 1~9
There will be no quantity limit if use professional software,.
and multi-units and statistical data analysis is available.
Instrument Dimension 350 mm (L) x 240 mm (W) x 140 mm (H)
Power Supply AC 220V 50Hz
Net Weight 19 kg
Configurations
Standard components Master machine, micro printer
Optional parts Test software, cable
