| Place of Origin: | China mainland |
| Brand Name: | SRI |
| Certification: | ISO 9001 |
| Model Number: | RS-60332 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 2000-3000USD |
| Packaging Details: | Polywood case |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 20sets/Month |
| Standards: | IEC60332 MT818, MT386, ISO5656 | Test Material: | Wire Cable Eletric Products |
|---|---|---|---|
| Customized: | No | Power Supply: | AC 220V, 50HZ |
Standards
IEC 60332 ,GB/T19666-2005, GB12972, GB13033, MT818,MT386, ISO5656

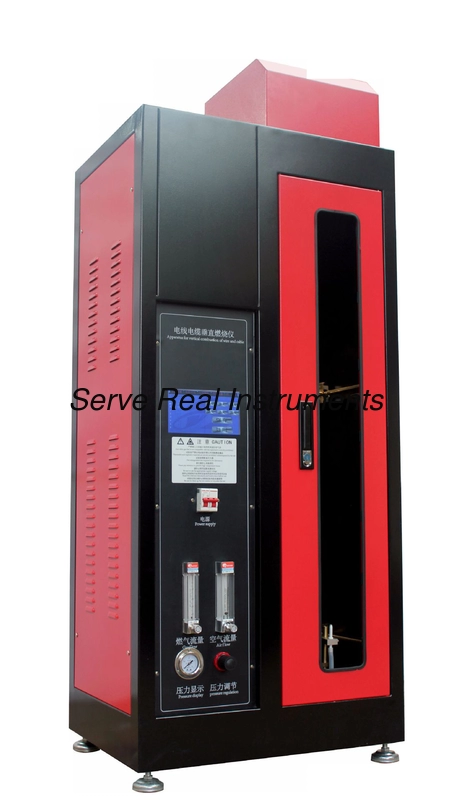

This equipment is used to determine the vertical burning characteristics of wire cable or optical fiber.
Features
7inch full color programmable touch screen+PLC
Automatically record the test time, automatically display the test results, automatic timing, automatic ignition, the Bunsen burner automatically returns after the flame is over, operator can choose whether to turn off the gas or not
When starting, can choose whether to auto-ignite; start, stop, gas, timing, ignition, save, save, lighting, exhaust are all operated by touch screen control,
Specifications
| Burner | I.D Φ9.5mm ± 0.5mm |
| Test angle | 45°, The sample beam can be moved back and forth, and the position of the Bunsen burner can be adjusted according to the size of the sample |
| Flame height | 20mm ± 2mm to 190mm±1mm adjustable |
| Burning time | 0-999.9s±0.1sadjustable |
| Burning gas | 95% propane gas (liquefied petroleum gas can be used as an alternative) |
| Sample length | 600±25mm |
| Sample outer diameter greater than 0.5mm2 | Conductor diameter greater than 0.8mm or cross-sectional area |
| Test environment | no ventilation and a temperature of (23 ± 10) ℃ |
| Bunsen burner power | 1KW |
| Power supply | AC 220V/50Hz |
| Gas flow | 0-1L/min |
| Air flow | 1.5-15L/min |
| Enclosure material | Steel plate electrostatic spraying ( stainless steel optional) |
| Overall size | L60 cm×W45cm× H15 6cm |
