Place of Origin: | China mainland |
Brand Name: | SRI |
Certification: | ISO 9001 |
Model Number: | GWFT-2 |
Minimum Order Quantity: | 1set |
---|---|
Price: | 3000-4000USD |
Packaging Details: | Polywood case |
Delivery Time: | 10 working days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 20sets/Month |
Standards: | IEC60695 UL746A IEC829 DIN695 VDE0471 | Test Material: | Glow Wire |
---|---|---|---|
Customized: | No | Power Supply: | AC 220V, 50HZ |
Standards
IEC60695 UL746A IEC829 DIN695 VDE0471

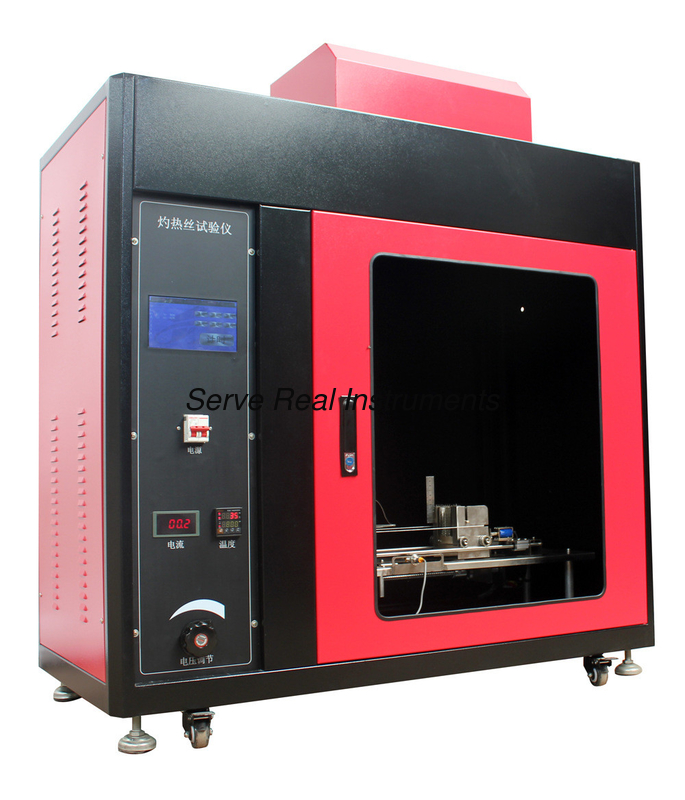

This test chamber is used to determine the flammability of glow wire, it can test the Ignitability, ignition temperature(GWIT), flammability, flammability index.
Features
MCU+touch screen control, high accuracy temperature indication, 7 inch touch screen, easy operation
Intelligent 7mm position limit adjustment
Gripper applicable for various shape and size of sample
X,Z direction free movement,
Full-sealed sample dolly won’t roll over
Equipped with flame height gauge, easy to check the flame height
Over-temperature protection
Photoelectric stop switch, more accurate limit
SCR temperature control system
Time & temperature digital display
Black background with illumination ≤20Lux
Automatic testing and independent air extraction
Specifications
Glow wire temperature | 500~1000℃±2℃ continuous adjustable |
Burning time | 0-999.9s±0.1s adjustable, (default as 30s) |
Ignition time | 0-999.9s±0.1s, auto recording, manual stop |
Off time | 0-999.9s±0.1s, auto recording, manual stop |
Thermocouple | Φ1mm K type armoured glow wire: Φ4 mm nichrome wire |
Ironing depth | 7mm±0.5mm |
Sample pressure | 0.95±0.1N |
Test speed | 14mm/s |
Test area size | >0.5 CBM, L900mm×W590mm×H1050mm, ( 0.75 or 1 CBM optional made) |
Overall dimension | W1160mm×D600mm×H1310(including foot)mm |
Configuration list
Combustion box table 1pc receiving plate 1pc Pine board 1pc standard weight (0.5N) 2pcs
Stainless steel gauge 1pc Row of smoke pipes 1pc Power cord 1pc Fuse 1pc
