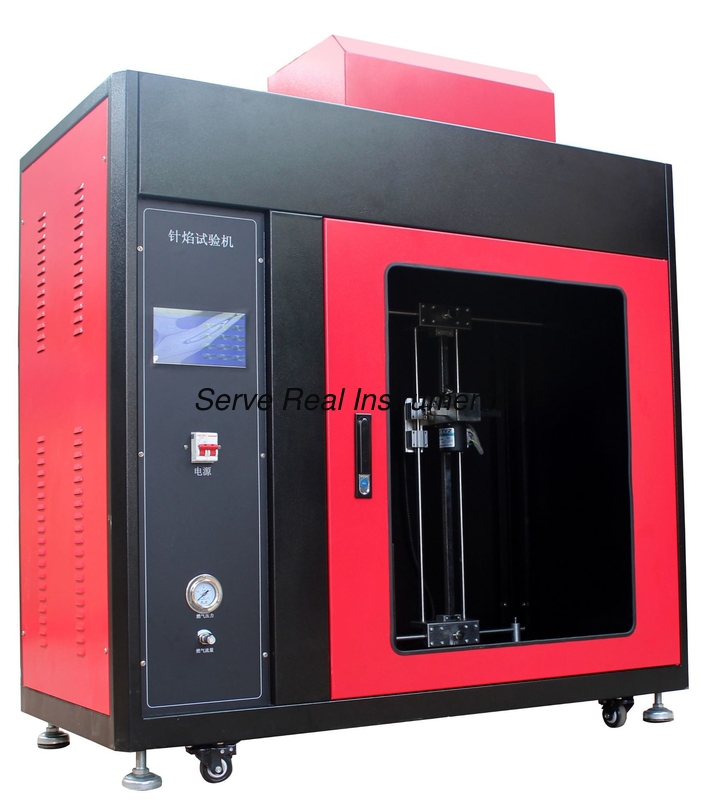

IEC60695-11-5 Needle flame test chamber Burning test equipment

IEC60695-11-5 Needle flame test chamber Burning test equipment

IEC60695-11-5 Needle flame test chamber Burning test equipment

Product Details:

Place of Origin: China mainland
Brand Name: SRI
Certification: ISO 9001
Model Number: NFT-02

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 3000-4000USD
Packaging Details: Polywood case
Delivery Time: 10 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 20sets/Month
Contact Now
Detailed Product Description
Standards: IEC60695 -11-5 GB/T5169.5-2008 GB4706.1-2005 Test Material: Electric Products
Customized: No Power Supply: AC 220V, 50HZ

Standards: IEC60695 -11-5,GB/T5169.5-2008,GB4706.1-2005


This test chamber is used to simulate the effect of small flames which may result from fault conditions within the equipment, in order to assess the fire hazard of electric products. Touch screen operation, gripper controlled by motor, auto movement of Bunsen burner.




Programmable touch screen controller+PLC control, highly automation through whole process

Automatic recording of burning time

Automatic recording of test time and generate test report

Automatic testing and independent air extraction

Black background with illumination ≤20Lux

Flame calibration set optional

Air flow adjustable(precise flow valve)




Needle burner: Inner hole Φ 0.5mm ± 0.1mm, outer dia. ≤Φ 0.9mm, length ≥ 35mm
Burner flame angle: 0- 45°( free adjustment )
Ignition time 0-999.9s±0.1s, freely adjustment(flame auto movement)
Burning time 0-999.9s±0.1s, auto recording, manual stop
Flame height 12mm ± 1mm (with height ruler)
Needle height >35mm(inner dia. Ф0.5, outer dia. Ф0.9)
Burning gas 95% butane gas( bottled liquefied petroleum gas optional)
Temperature measure range 0~1000℃
Flame temperature rise rate The time from 100 ℃ ± 2 ℃ to 700 ℃ ± 3 ℃ is within 23.5 seconds ± 1 second
Thermocouple Φ0.5mm (K type) Ni-Cr / Ni-Al wire thermocouple, insulated to ground
Heat transmission copper block Ф4.0x6.0mm
Burning gas alarm system Optional
Overall size W1160mm×D600mm×H1310(including foot)mm(0.75CBM or 1CBM SUS enclosure optional)
Test area size >0.5CBM, L900mm×W590mm×H1050mm
