| Place of Origin: | China mainland |
| Brand Name: | SRI |
| Certification: | ISO 9001 |
| Model Number: | RS-3795 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 1000-3000USD |
| Packaging Details: | Polywood case |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100sets/Month |
| Standards: | FMVSS 302 ISO 3795 | Test Material: | Construction Materials |
|---|---|---|---|
| Customized: | Yes | Power Supply: | AC 220V, 50HZ |
Model: RS-3795
Standards: FMVSS 302 GB/T8410 ISO 3795 DIN 75200 SAE J369 ASTM D5132 JIS D1201 BSAU 1690 CMVSS 302

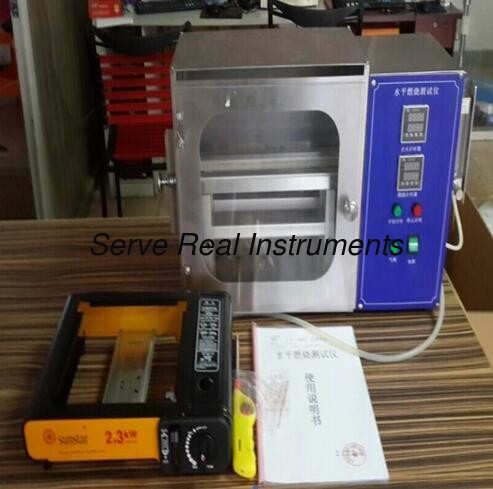

This chamber is used to determine the flammability characteristics of automotive interior material, The chamber is comprised of control cabinet and burning chamber, the controller controls the ignition time, after flame off, observe the flame spread, thus to evaluate the flame retardant performance.
Technical specifications
Flammability chamber inner size: 381mm×203mm×356mm
Nozzle diameter: 9.5mm
Flame height: 38mm±2
Sample holder: 360×100mm, inner frame size: 330×50mm×9mm
Down sample holder: metal wire gap 25mm
Mark-line point: distant to the sample ignition point: 38mm, 138mm, 292mm
Nozzle top distant to the sample surface: 19mm
Test ambient condition: 15~30℃, relative humidity 30%~80%
Net weight: 25kg
