| Place of Origin: | Jiangsu |
| Brand Name: | SRI |
| Certification: | ISO9001 |
| Model Number: | DIN-40 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 1500-2000USD/Set |
| Packaging Details: | Carrying case |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Paypal, Western Union |
| Supply Ability: | 300Sets/Month |
Keywords: DIN Abrasion Tester, Rubber abrasion testing machine
Standards: GB9867, ISO4649, DIN53516

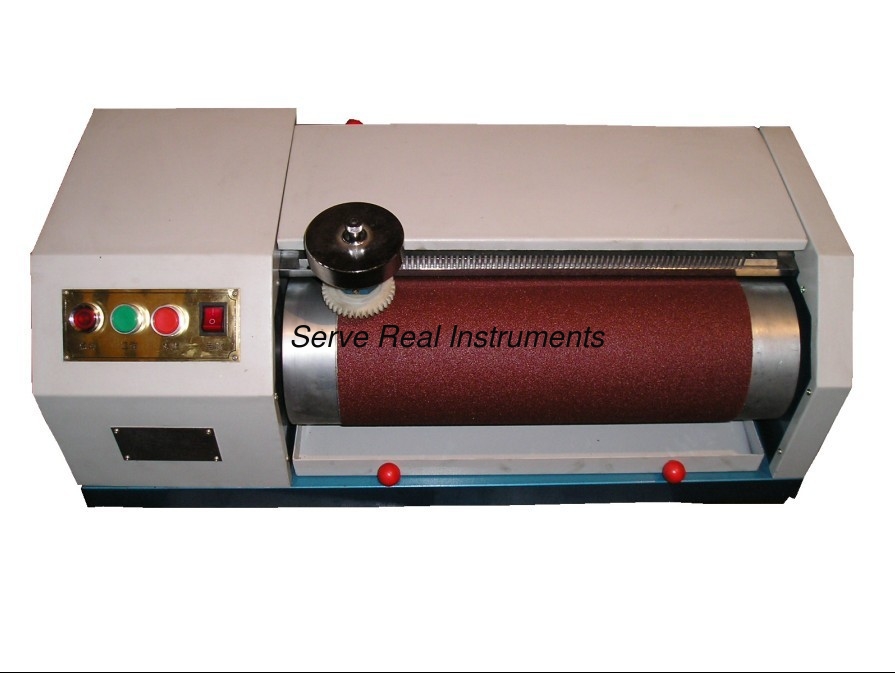

Description
The Din abrasion tester is mainly used to test the wearing resistance of rubber, Tyre, rubber shoes, adhesive tape, thus to test the rubber products quality. It’s kind of common rubber material testing machine.
Technical Specifications
Sample bearing force: 10±0.2N
Abrasion stroke: 40or20m
Roller rotation speed: 40±1r/min
Roller diameter: 150±0.2mm
Sample diameter: 16±0.2mm
Roller length: 460mm
Sample size: 16±0.2mm * 6mm (Dia. * T)
Sample clamper moving speed: 4.2±0.06mm/r
Sample rotation speed: 0.9r/min or static
Self loading: 2.5N (by clamper and cantilever) sample loading: 5N, 7.5N, 10N, 12.5N, 15N, 17.5N, 20N (with 3 weights)
Power supply: AC220V 50Hz
Net weight: 55kg
Packing weight: 65kg
Overall size: 700×340×300mm
Packing size: 870*420*530mm
