| Place of Origin: | China |
| Brand Name: | SRI |
| Certification: | ISO 9001:2000 |
| Model Number: | MFR-400B |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 1500 USD/set |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T, L/C, PAYPAL, Western Union |
| Supply Ability: | 200 sets/month |
Standards: ISO 1133-2005, GB/T 3682-2000
Description

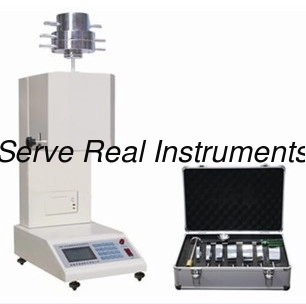

The melt flow rate tester is used to test the thermoplastic plastics melt flow rate by Mass Flow Rate method(MFR)
Test objects
Lower melt temperature: LDPE, polypropylene, polystyrene, ABS Resin
Higher melt temperature: Polycarbonate, fluoroplastics, nylon, engineering plastics
Technical specifications
|
Extrusion part |
|
|
Discharge hole diameter |
Φ2.095±0.005mm |
|
Discharge hole length |
8.000±0.025mm |
|
Charge cylinder internal diameter |
Φ9.550±0.025mm |
|
Charge cylinder length |
152±0.1mm |
|
Piston rod diameter |
Φ9.475±0.015mm |
|
Piston rod length |
6.350±0.100mm |
|
Piston rod effective stroke |
30mm |
|
Measuring parameters |
|
|
Temperature range |
Room temperature~400℃ |
|
Temperature control range |
±0.2℃ |
|
Temperature fluctuation |
±0.2℃ |
|
Temperature resolution |
0.1℃ |
|
Temperature recovery time |
≤4min |
|
Measuring mode |
MFR |
|
Measuring range |
0.1~300g/10min(MFR) |
|
Total load |
Total 8 grades, 8 sets of weight |
|
Timing accuracy |
0.1s(MFR,MVR) |
|
Cutting mode |
Automatic(during process),manual(when adjusting) |
|
Max dissection number |
9times |
|
Max dissection interval |
9999.9s |
|
Storage capacity |
20units |
|
Printer |
Panel thermal printer |
|
Power supply |
AC 220V, 50Hz |
|
Power |
490W |
|
Overall size |
290×410×630mm |
