Foam Sponge Rebound Tester Drop Ball Test equipment ASTM D3574 ISO8307

Foam Sponge Rebound Tester Drop Ball Test equipment ASTM D3574 ISO8307

Foam Sponge Rebound Tester Drop Ball Test equipment ASTM D3574 ISO8307

Product Details:

Place of Origin: Jiangsu
Brand Name: SRI
Certification: ISO 9001:2008
Model Number: XC-HT01

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 2000-3000USD/Set
Packaging Details: Carrying case
Delivery Time: 5-10 days
Payment Terms: T/T, Paypal
Supply Ability: 100Sets/Month
Contact Now
Detailed Product Description

Standards: ASTM D3574, ISO8307:2007, GB/T6670-2008

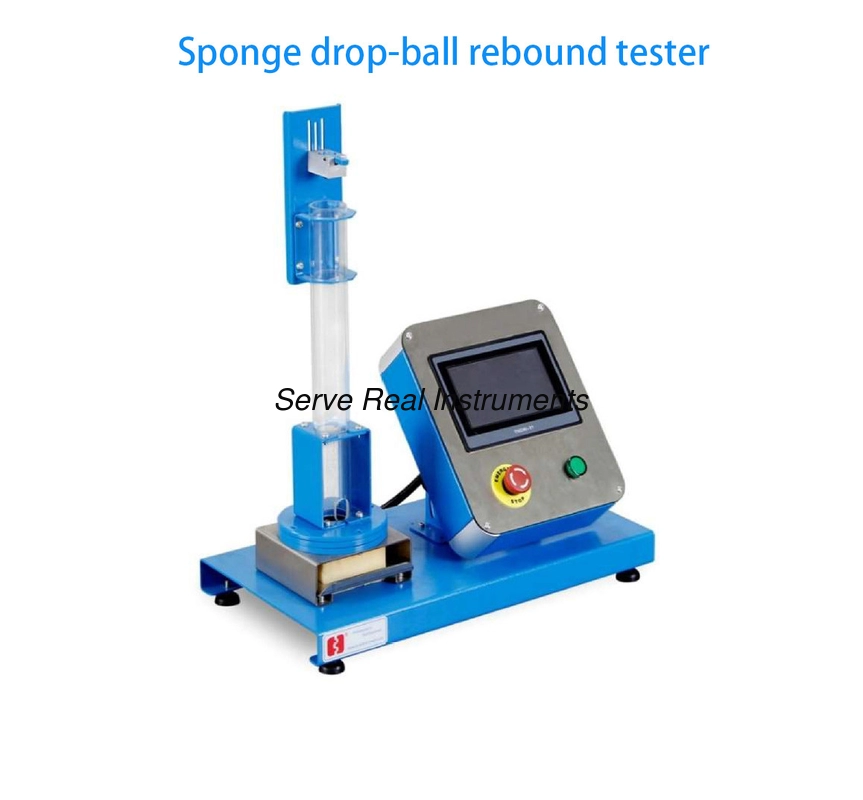

This Automatic foam rebound tester is used to test the foam rebound performance, the test procedure is: let a steel ball with specific weight fall from a certain height onto the foam, then measure the rebound height, then calculate the ratio between rebound height and falling height, thus obtain the foam rebound performance. It’s kind of common foam testing equipment.



The simple steel ball detachment structure design ensures that the steel ball will not rotate during the drop process.
2. A bubble level is installed to facilitate adjusting the vertical state of the transparent catheter
3. High sensitivity fiber optic sensor, making the time for grasping steel balls and dropping more accurate.

4. Touch screen output test results, Chinese and English interface switching, automatic display of average value, maximum value, and rebound rate


Technical specifications

1. Steel ball: diameter 16 millimeters, net weight 16.5 grams.

2. Conduit: Acrylic transparent tube with an inner diameter of 40mm can have a drop height of 460mm or 500mm (in compliance with both national and American standards)
3. Equipment size: 570x 300x 660mm, net weight: 15.5Kg.
4. Power supply: 220VAC 1A.


Standard accessories

1. Magnetic-head pick rod

2. 16mm dia. steel ball
