IULTCS Leather abrasive tester SATRA TM 173, SATRA TM177

Standards

QB/T2537-2001,IS0 11640,QB/T2882-2007, QB/T 2880-2007,GB/T 3903.31,IUP 450, BS 1006. DIN 53339,SATRA TM 173, SATRA TM177

Features

♦ Surface treatment of the body: DuPont powder from the United States, electrostatic spray painting process, cured at high temperature of 200 ℃ to ensure long-lasting color fastness.
♦ The mechanical components are composed of non corrosive structural aluminum and stainless steel materials;
♦ Precision drive motor, smooth operation, low noise;
♦ LED-SLD806 integrated display control box, menu based operation mode
♦ High precision bearings are selected, with smooth and stable rotation and long service life;
♦ One click automatic testing, independent control, simple and convenient operation;

Specifications

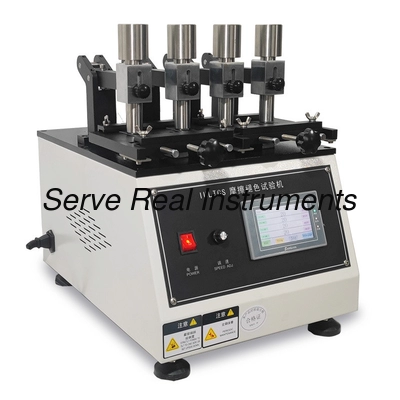

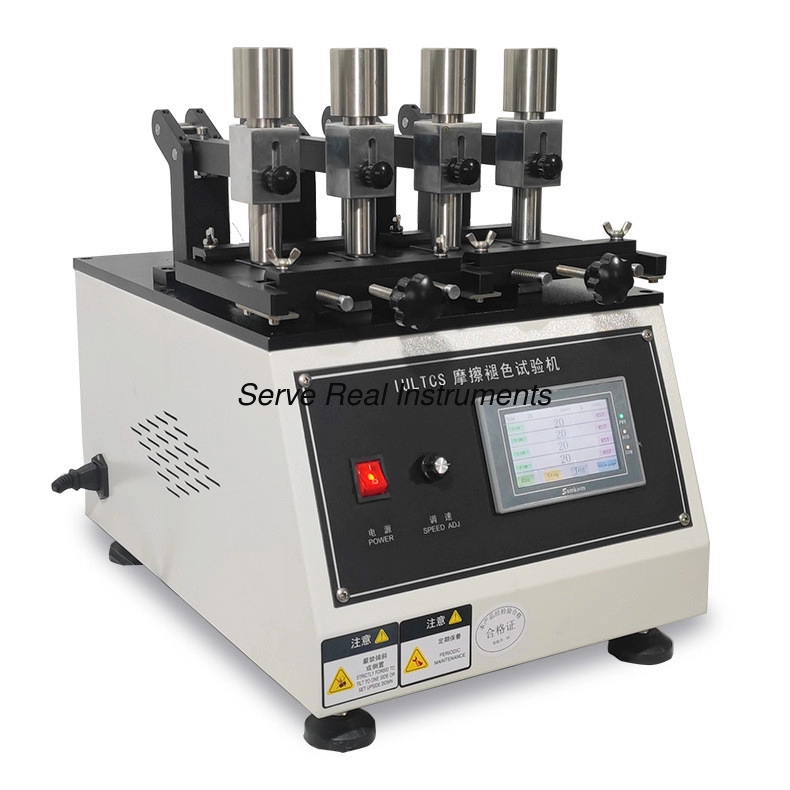

A. 4-head type

1. Motion trajectory: reciprocating friction.
2. Test station: 4 units
3. Friction head pressure: 500g, 1000g can be disassembled and fixed to install the sample.
4. Stroke: 35mm-40mm.
5. Test speed: (402) times/minute.
6. Wool felt size square: (15X15) mm.
7. Power supply: AC220V, 10A.
8. Volume: 550 * 400 * 420mm.
9. Weight: 40Kg

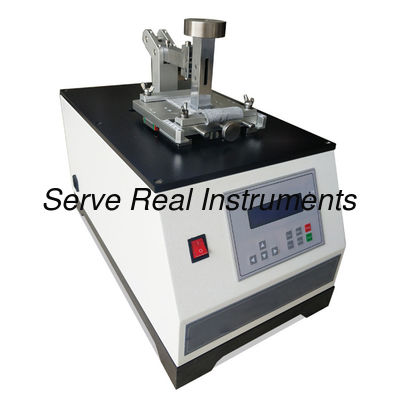

B. Single head type

1. Motion trajectory: reciprocating friction.
2. Friction head pressure: 500g, 1000g can be disassembled and fixed to install the sample.
3. Stroke: 35mm-40mm.
4. Test speed: (402) times/minute
5. Wool size square: (15X15) mm.
6. Power supply: AC220V, 10A.
7. Volume: 330 * 550 * 420mmo
8. Weight: 40Kgo
