Standard
SATRA TM171 DIN-53338 EN20344 GB/T20991-2007 ISO 14268 ISO 5403-1 GB-T 3903.17 GB/T 22890-2008
Scope of application:

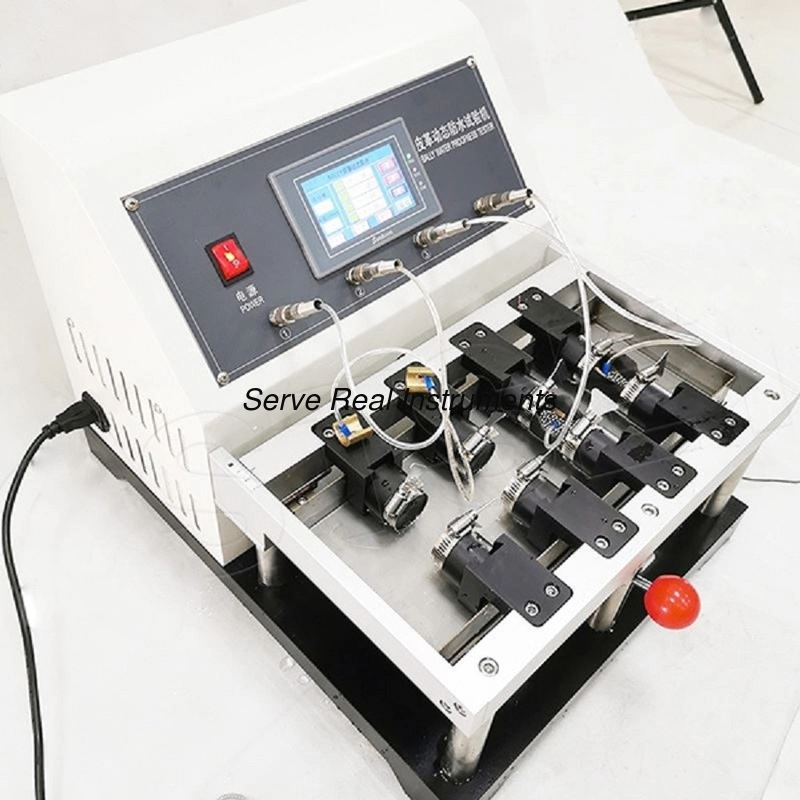

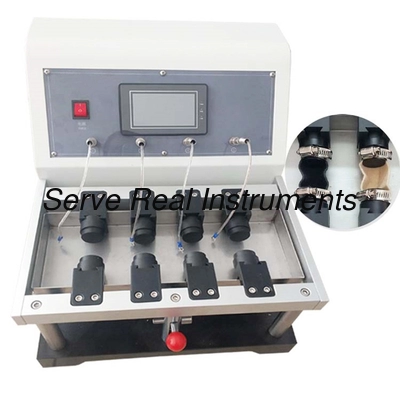

This equipment is used to test the anti-permeability properties of various shoe upper materials, such as leather, artificial leather, cloth, etc.
Features
The mechanical parts are composed of non-corrosive structures and stainless steel materials;
Body surface treatment: adopts DuPont powder from the United States, electrostatic spray paint process, curing at high temperature of 200 ºC to ensure long-term color retention
Color LCD touch screen control and display, human-computer interaction interface, simple operation, convenient maintenance, stable and reliable;
It can be adjusted by jog, and the distance between clamps can be adjusted;
Independent sensor probe, independent research and development of water leakage system;
Stainless steel sink, adjustable up and down movement;
Water leakage will stop automatically and the system will display;
Specifications
Speed | 60 times/minute |
Distance between adjacent surfaces of two cylinders | 40mm |
Cylinder diameter | 30mm |
Position shift | 0-6mm adjustable |
Sync test samples | 4 pieces |
Controller | PLC touch control |
Voltage | AC220V, 50hz |
Volume | 410*550*380mm |
Weight | 50kg |
