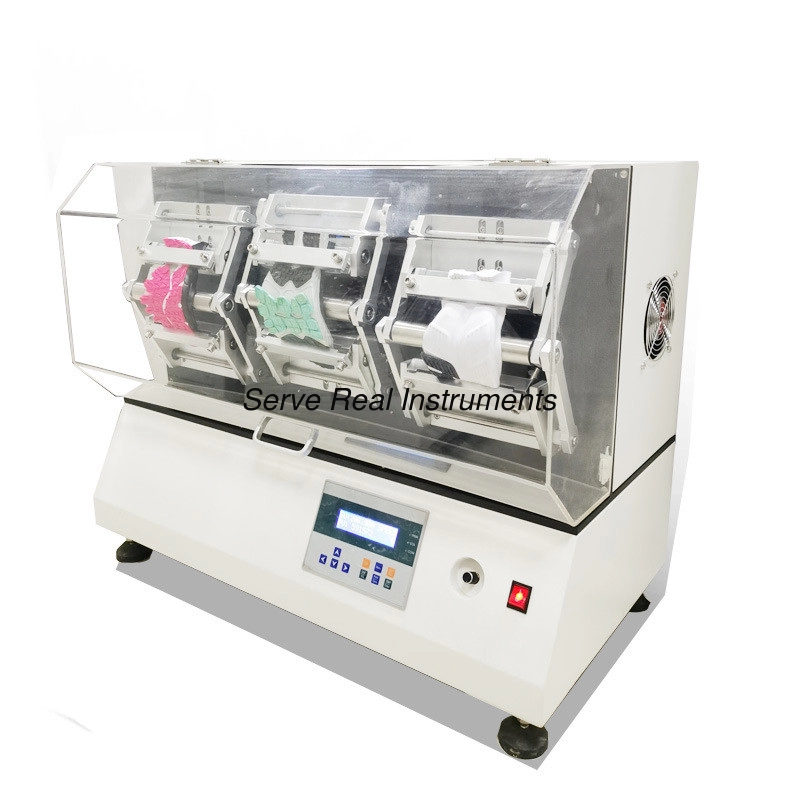

Sole Flexing Tester SATRA TM161 EN ISO 17077

Standards

SATRA TM161,GB/T2099-2007,ENISO 20344-2011ENIS017707, ENISO-20344, DIN53543

Features

♦ LED-SLD806 integrated display control box, menu style operation mode;
♦ The position can be adjusted by jogging, and the test speed can be adjusted;;
♦ The mechanical components are composed of non corrosive structural aluminum and stainless steel materials;
♦ Precision drive motor, smooth operation, low noise;
♦ Equipped with counting and timing self stop functions, setting test values can automatically stop testing;
♦ High precision bearings are selected, with smooth and stable rotation and long service life;
♦ The mechanical components are composed of non corrosive structural aluminum and stainless steel materials;
♦ One click fully automatic testing, easy and convenient to operate;
♦ New vertical structure design, convenient sample installation;
♦ Three samples can be tested simultaneously, with simultaneous twists and turns;
♦ The open close protective cover can protect the operator's hands, and also has the function of opening the cover to stop protection and sensing

Specifications

1. Number of workstations: 3 workstations (capable of measuring 3 large bottoms at the same time) 2. Bending angle: (90 soil 2) °;
3. Speed: 5~150cpm adjustable;
4. Inching function: sample installation, one click self positioning function; 5. Volume; 86*46*80cm; 6. Diameter of winding shaft: 30mm;
7. Protective cover: Inductive safety protective cover;
8. Weight: 118kg;
9. Power supply: AC220V, 10A;

Configurations

1. Machine, 1 unit
2. Inner hexagonal wrench: 1 set
3. 1 cutting knife
4. 1 power cord
