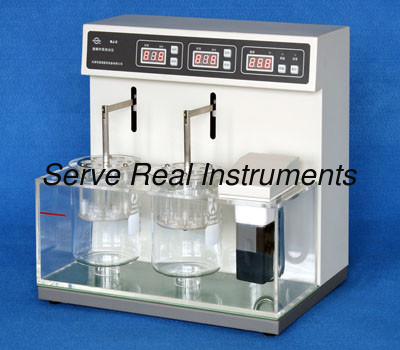

Disintegration Time Tester, Drug testing equipment

The disintegration tester is mainly used to test the disintegration status under specified condition. It's kind of common drug testing equipment.

Standards

Q/12XQ0188-2010

Features

  Double cup, 12 tubes

 Double cups, double channels, each channel run independently, independent control, automatic timing stop

 Automatic temperature control, high control accuracy

 Imported stainless steel material for hanging basket and hanging rod

 Minitype water pump water flow uniform heating system

 Full automatic intelligent temperature control, time, and frequency

 Can freely set the test time, time-share display the preset value and real value

 Automatic detection, automatic diagnosis, automatic alarm

Technical specifications

1. Lifting hanging basket quantity: ２no
2. Hanging basket tube number: 12pcs
3. Flat beaker volume: 1000ml
4. Hanging basket run frequency: 30-32hz
5. Hanging basket run: 55±1ｍｍ
6. Sieve min distance: 25±2ｍｍ
7. Timing range:(１~900)min
8. Timing accuracy: ±0.5min
9. Temperature preset range:20~45℃
10. Automatic temperature control accuracy:±0.5℃
11. Heater power: 500ｗ
12. Continuous work time: >24hrs
13. Power supply: AC 220V/50hz
14. Power: 600w
15. Overall dimension: 40cm×30cm×42cm
16. Net weight:16kg
